RM-T1011+GC7+GK-7 Thermoforming Machine Featured Image
  • RM-T1011+GC7+GK-7 Thermoforming Machine
RM-T1011

RM-T1011+GC7+GK-7 Thermoforming Machine

Short Description:

Model: RM-T1011
Max. mould size: 1100mm×1170mm
Max. forming area: 1000mm×1100mm
Min. Forming area: 560mm×600mm
Max. rate of production speed: ≤25Times/min
Max.Forming Height: 150mm
Sheet width(mm): 560mm-1200mm
Mould moving distance: The stroke≤220mm
Max. clamping force: forming-50T, punching-7T and cutting-7T
Power supply: 300KW(heating power)+100KW(operating power)=400kw
Including punching machine 20kw, cutting machine 30kw
Power supply specifications: AC380v50Hz,4P(100mm2)+1PE(35mm2)
Three-wire five-wire system
PLC: KEYENCE
Servo Motor: Yaskawa
Reducer: GNORD
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP. PS. PET. CPET. OPS. PLA

Product Detail

Product Tags

Description

The large format thermoforming machine RM-T1011 is a continuous forming line specially designed for the production of plastic products such as disposable bowls, boxes, lids, flower pots, fruit boxes and trays. Its forming size is 1100mmx1000mm, and it has the functions of forming, punching, edge punching and stacking. The large format thermoforming machine is an efficient, multi-functional and precise production equipment. Its automatic operation, high-quality molding, energy saving and environmental protection make it an important equipment in the modern production process, which can help enterprises improve production efficiency, reduce costs, and meet customers' needs for product quality.

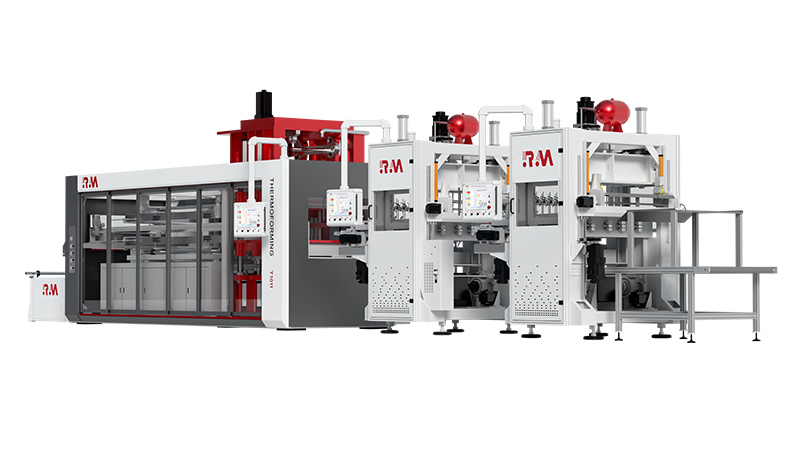

The-Large-Format-Thermoforming-Machine-RM-T1011

Machine Parameters

Max. Mould Dimensions

Clamping Force

Punching Capacity

Cutting Capacity

Max. Forming Height

Max. Air

Pressure

Dry Cycle Speed

Max. Punching/ Cutting Dimensions

 Max. Punching/ Cutting Speed

Suitable Material

1000*1100mm

50T

7T

7T

150mm

6 Bar

35r/min

1000*320

100 spm

PP、HI PS、PET、 PS、PLA

Features

Efficient production

The large format thermoforming machine adopts the working method of a continuous production line, which can continuously and efficiently complete the molding process of the product. Through the automatic control system and high-speed mechanical operation, the production efficiency can be greatly improved to meet the needs of mass production.

Multifunctional operation

The machine has multiple functions such as forming, punching, edge punching and palletizing.

Precise molding and high-quality products

The large-format thermoforming machine adopts advanced molding technology, which can precisely control the heating temperature, pressure and heating time to ensure that the plastic material is fully melted and evenly distributed in the mold, thereby manufacturing products with high surface quality and dimensional accuracy.

Automatic operation and intelligent control

The machine is equipped with a highly automated operating system, which can realize functions such as automatic feeding, automatic forming, automatic punching, automatic edge punching and automatic palletizing. The operation is simple and convenient, reducing manual intervention, greatly improving production efficiency and reducing production costs.

Safety and environmental protection

The large format thermoforming machine is made of high-quality materials, which has good durability and stability. It is also equipped with a safety protection system to ensure the safety of operators. At the same time, the machine has an energy-saving design, which can minimize energy consumption and reduce the impact on the environment.

Application

Large format thermoforming machine RM-T1011 thermoforming machine is widely used in the catering industry, food packaging industry and household goods industry. Due to its high efficiency, multi-function and precise features, it can meet the production needs of different industries for plastic products and provide strong support for enterprises to improve production efficiency and product quality.

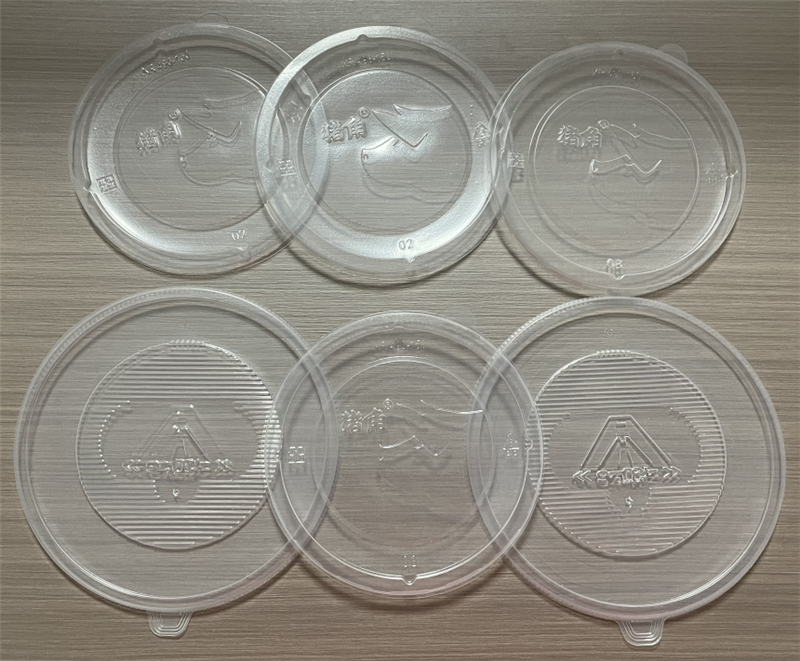

application02

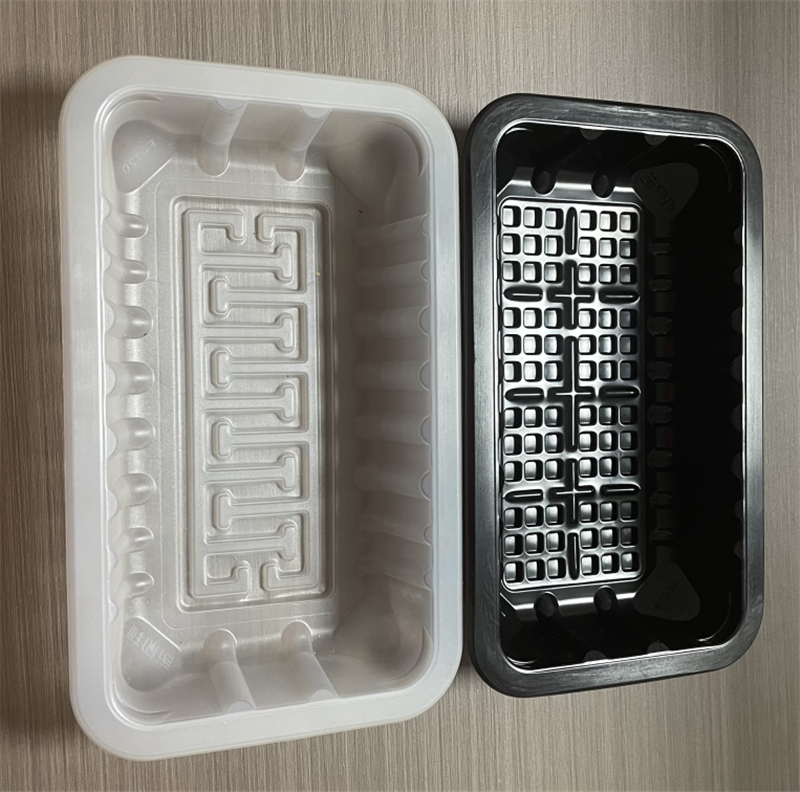

application01

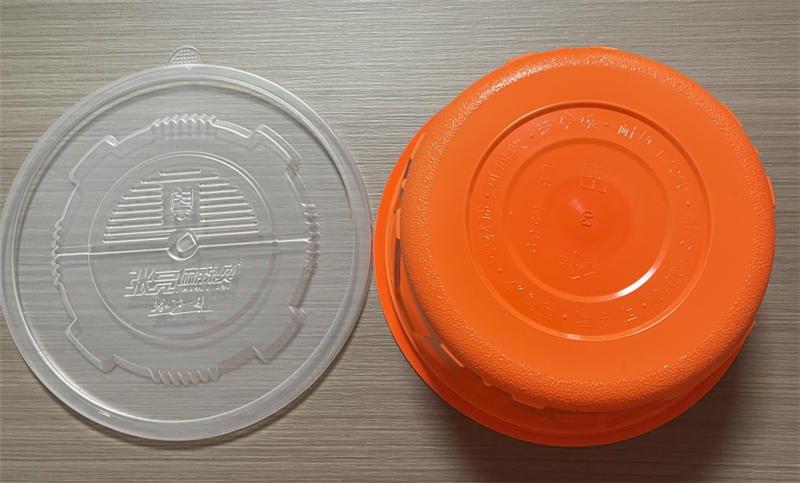

application03

Tutorial

Equipment Preparation

To starter your thermoforming machine, secure a reliable large format thermoforming machine RM-T1011 by confirming its secure connection and powering it on.  A comprehensive check of the heating, cooling, and pressure systems is essential to verify their normal functionality.  Safeguard your production process by meticulously installing the required molds, ensuring they are firmly anchored for smooth operation.

Raw Material Preparation

Achieving perfection in thermoforming begins with meticulous raw material preparation.  Carefully select a plastic sheet best suited for molding, and ensure its size and thickness align with the specific mold requirements.  By paying attention to these details, you set the stage for impeccable end products.

Heating Setting

Unlock the true potential of your thermoforming process by expertly configuring the heating temperature and time through the control panel. Tailor your settings to match the plastic material and mold requirements, achieving optimal results.

Forming - Hole Punching - Edge Punching - Stacking and Palletizing

Gently place the preheated plastic sheet onto the mold surface, ensuring it is perfectly aligned and free from any wrinkles or distortions that could compromise the forming process.

Initiate the molding process, carefully applying pressure and heat within the specified time frame to shape the plastic sheet precisely into the desired form.

Once the forming is complete, the newly shaped plastic product is left to solidify and cool within the mold, before proceeding to the hole punching, edge punching, and orderly stacking for convenient palletizing.

Take Out the Finished Product

Inspect each finished product meticulously to ensure it conforms to the required shape and adheres to the established quality standards, making any necessary adjustments as needed.

Cleaning and Maintenance

Upon completion of the manufacturing process, power down the thermoforming machine and disconnect it from the power source to conserve energy and maintain safety.

Thoroughly clean the molds and equipment to eliminate any residual plastic or debris, preserving the molds' longevity and preventing potential defects in future products.

Implement a regular maintenance schedule to inspect and service various equipment components, guaranteeing that the thermoforming machine remains in optimal working condition, promoting efficiency and longevity for continuous production.
