RM-1H

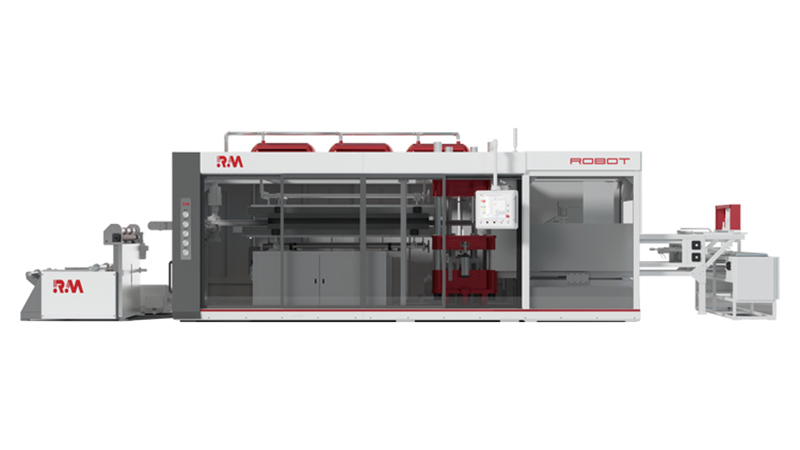

RM-1H Servo Cup Thermoforming Machine

Short Description:

Model: RM-1H
Max.Forming Area: 850*650mm
Max.Forming Height: 180mm
Max.Sheet Thickness(mm): 3.2 mm
Max Air Pressure(Bar): 8
Dry Cycle Speed: 48/cyl
Claping Force: 85T
Voltage: 380V
PLC: KEYENCE
Servo Motor: Yaskawa
Reducer: GNORD
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP. PS. PET. CPET. OPS. PLA

Product Detail

Product Tags

Description

RM-1H Servo Cup Thermoforming Machine is a high-performance cup making equipment that offers users the flexibility of electric and manual mold adjustment modes. The machine adopts advanced servo control technology to precisely control the cup making process, ensuring stable and reliable product quality. The RM-1H Servo Cup Thermoforming Machine offers excellent cost-effectiveness, excelling not only in cup making efficiency but also in maintenance costs and energy consumption. Its high production capacity and stable performance make it an ideal choice for the cup making industry. Additionally, the machine is compatible with all molds of the universal 750 model, allowing users to easily switch between different specifications of molds to achieve multi-variety and small-batch production, meeting the diverse market demands. In summary, the RM-1H Servo Cup Making Machine is a powerful, flexible, and cost-effective cup making equipment suitable for cup production of various specifications, making it an ideal choice for the cup making industry.

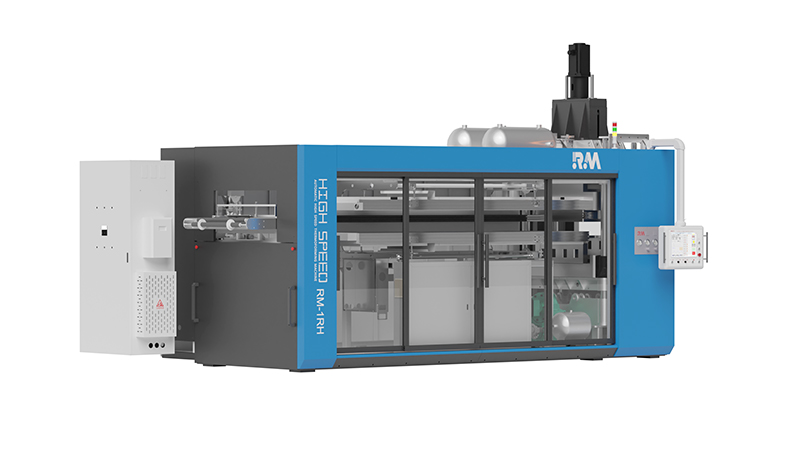

RM-1H-Servo-Cup-Thermoforming-Machine

Machine Parameters

Molding area Clamping force Running speed Sheet thickness Forming height Forming pressure Materials
Max. Mould
Dimensions
Clamping Force Dry Cycle Speed Max. Sheet
Thickness
Max.Foming
Height
Max.Air
Pressure
Suitable Material
850x650mm 85T 48/cycle 3.2mm 180mm 8 Bar PP, PS, PET, CPET, OPS, PLA

Features

High Precision

It adopts advanced position control algorithms and high-resolution encoders, enabling extremely precise position control to meet the accuracy requirements of industrial automation systems. Whether in positioning, speed control, or high-speed motion processes, the RM-1H servo motor can maintain stable precision, ensuring the accuracy of the production process.

High speed

It adopts optimized motor design and high-performance drivers, enabling rapid acceleration and deceleration to enhance production efficiency. In industrial automation systems requiring quick response, the RM-1H servo motor can rapidly and stably accomplish various motion tasks, improving the overall efficiency of the production line.

High Reliability

It adopts high-quality materials and strict quality control standards, possessing excellent durability and stability. During prolonged operation, the RM-1H servo motor can maintain stable performance, reduce failure rates, lower maintenance costs, and ensure the continuous and stable operation of the production line.

Application

RM-1H This machine has a wide range of application fields, especially for food packaging industry and catering service industry. Disposable cold drink cups, boxes, bowls and other products are widely used in fast food restaurants, coffee shops, beverage shops and other places, meeting consumers' needs for hygiene and convenience.

Application2
Application1

Tutorial

Equipment Preparation

Take power on your cup making machine. Methodically inspect the heating, cooling, and pressure systems, ensuring all functions operate flawlessly. Installing the required molds with utmost precision guarantees stable and safe production.

Preparation of Raw Materials

The foundation of any remarkable product lies in the preparation of raw materials. Preparing a suitable plastic sheet and Double-check that its size and thickness align precisely with the mold requirements.

Heating Setting

Setting the heating temperature and time through panal. Balancing the needs of the plastic material and mold specifications leads to optimal results. Patiently await the thermoforming machine's heating, ensuring the plastic sheet attains the desired softness and malleability for an exquisite molding experience.

Forming - Stacking

Gently place the preheated plastic sheet onto the mold, meticulously flattening it to perfection. Initiate the molding process, allowing the mold to exert pressure and heat, shaping the plastic sheet into its desired form. Afterward, witness the plastic solidify and cool through the mold, and then stacking and palletizing.

Take out the Finished Product

Your finished products undergo meticulous inspection to ensure they meet the highest standards. Only those that satisfy the stringent requirements will leave the production line, setting the stage for a reputation built on excellence.

Cleaning and Maintenance

Safeguard your equipment's longevity by turning off the thermoforming machine and disconnecting it from the power source after each use. Regularly check various equipment components, ensuring it works in good condition.
